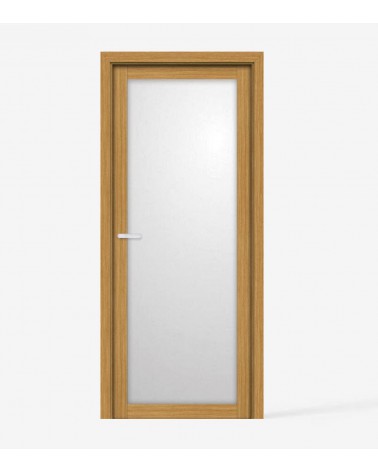

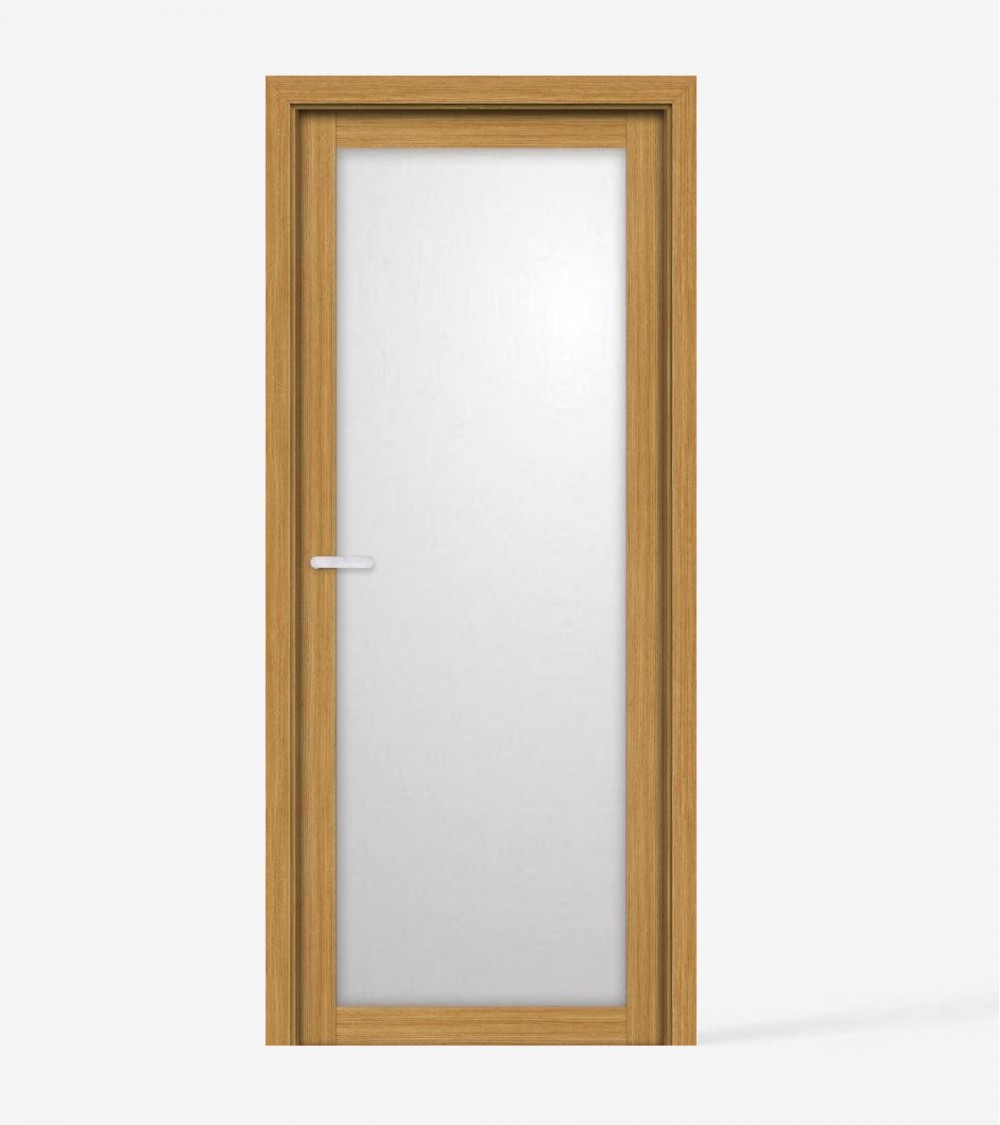

"VISIO" is a modern door that will perfectly complement both minimalist and ornately decorated spaces.
COATING: laminate.
DESCRIPTION OF THE LEAF

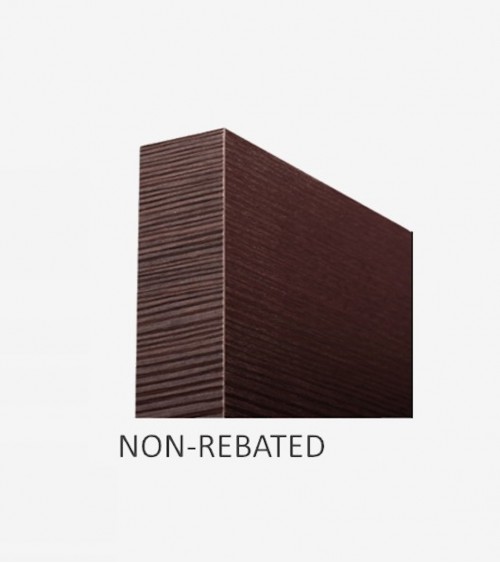

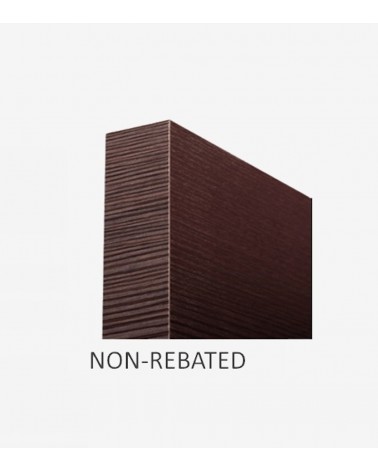

The frame of the door leaf is made of solid wood. Vertical and horizontal stiles of the same thickness (40 mm). 6 mm thick tempered safety glass. Door leaf non-rebated.

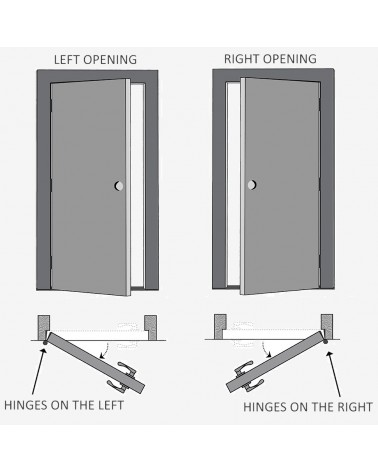

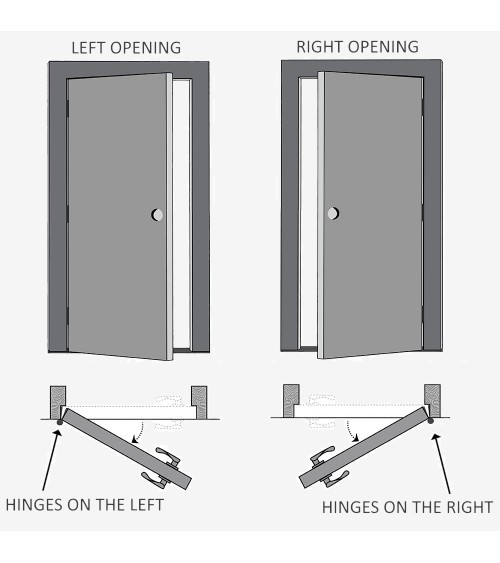

OPENING DIRECTION: Selectable for "left" or "right" opening.
DOOR LEAF DIMENSIONS
Height: 2043 mm.
Width: 644 mm; 744 mm; 844 mm; 944 mm.
Thickness: 40 mm.
DESCRIPTION OF THE FRAME
The door frame is made of high quality MDF. Frame with sealing gasket. Ready for installation.
The adjustable frame is equipped with architraves on both sides, the width of the frame can be selected according to the thickness of the wall, it can be used for walls with a thickness of 75-320+ mm.
ADJUSTABLE FRAME DIMENSIONS
Width: 75 - 320 mm.
Thickness: 22 mm

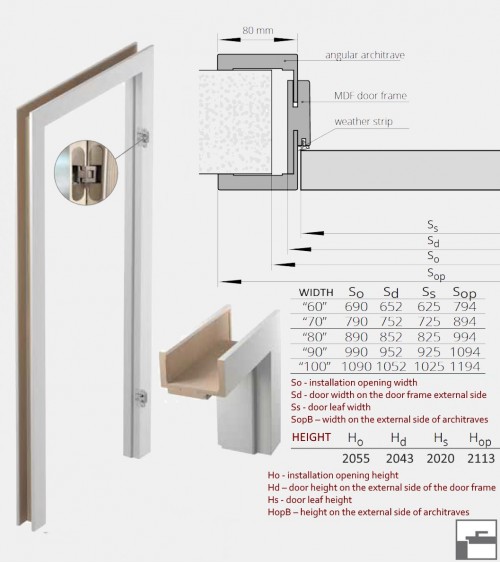

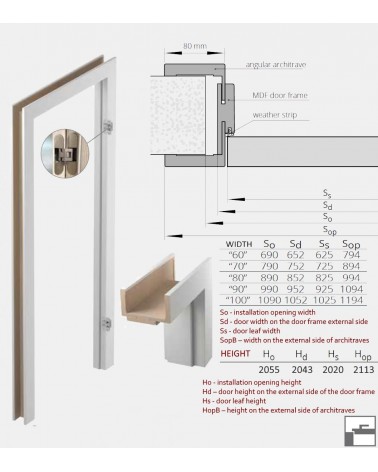

EXTERNAL DIMENSIONS OF THE LEAF WITH ADJUSTABLE FRAME
Height: 2051 mm.
Width: 680 mm; 780 mm; 880 mm; 980 mm.
*The opening in the wall should be no lower than 2051 mm, no narrower than 680 mm. The architraves can cover up to 2120 mm high wall opening.
DESCRIPTION OF ARCHITRAVES
Adjustable "L" shaped door architraves are made of MDF.
Width: 80 mm. Thickness: 16 mm.
EXTERNALLY ADJUSTABLE FRAME WITH ARCHITRAVES DIMENSIONS
Height: 2122 mm
Width: 784 mm; 884 mm; 984 mm; 1084 mm.
IN STANDARD DOOR SET
Door leaf, frame with sealing gasket, magnetic lock, hinges.
The adjustable frame comes complete with architraves on both sides.
ADDITIONALLY CAN BE ORDERED: A set of handles; WC lock; Cylindrical lock with cover.
