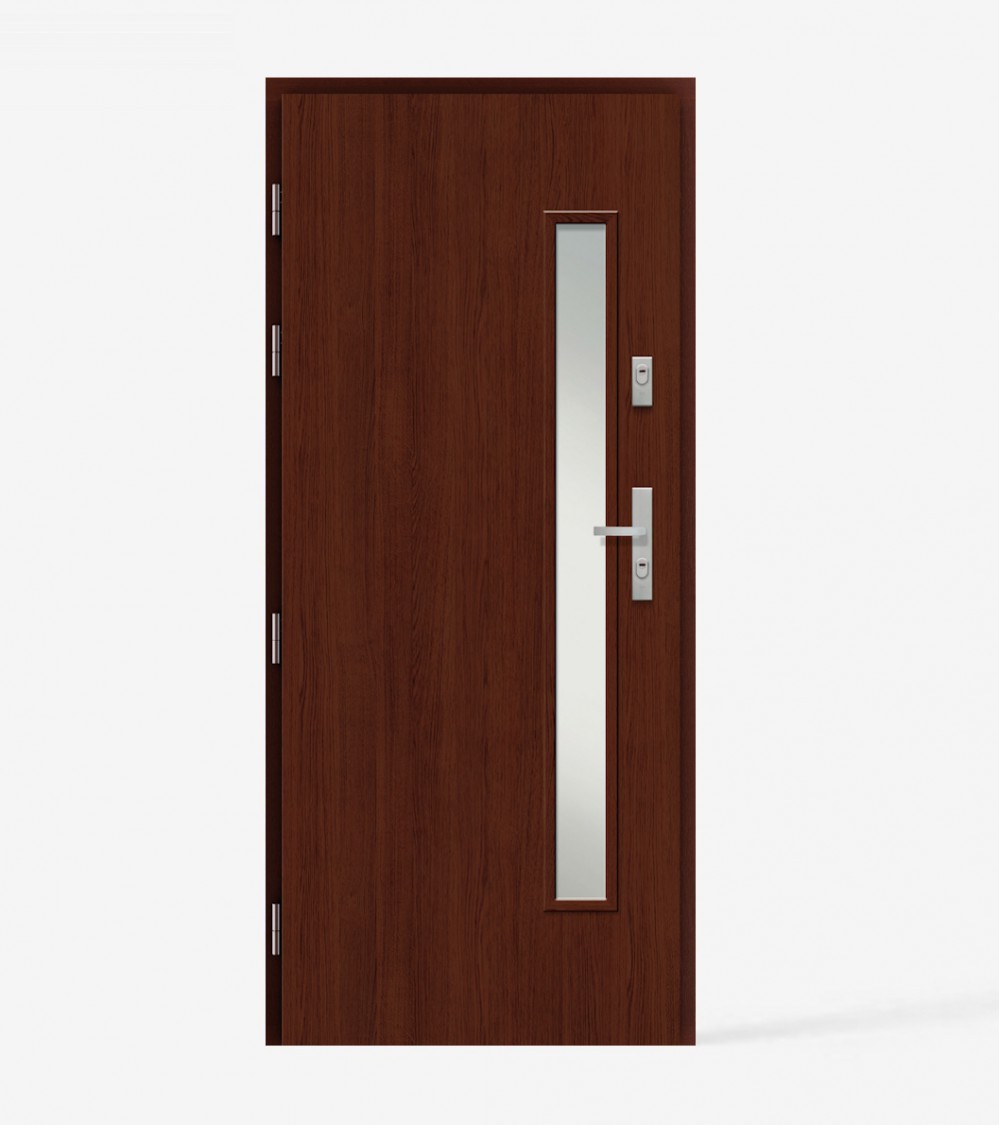

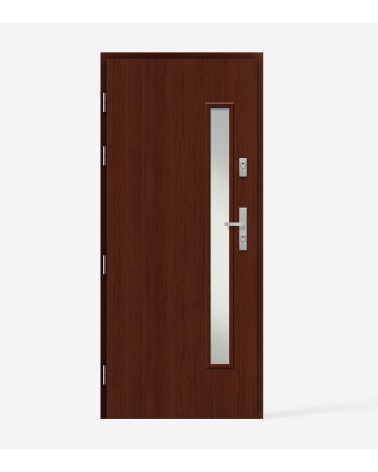

Doors in a rebated system with a timeless design. Sash surface painted with opaque or transparent paints. The filling is a thermal insulation layer. On the surface of the leaf on the external side the application of stainless steel in INOX or black color (applies to version L1).
Thickness of the leaf 60 mm.
Heat transfer coefficient: Ud=1.1 W/m2K*
Burglar resistance class EN 1627 RC2
Opening direction: External - left/right
SET INCLUDED
Oak threshold with aluminum profile
Pine (opaque paints) or oak (transparent paints) 100x60 mm
Anti-theft system ("French rebate")
Double gasket system (around the perimeter of the sash and frame)
Glazing package - single-chamber with Chromatech Ultra warm frame with anti-burglary class P4
STANDARD COLORS
Covering paint: Brown NCS S 8010-Y90R; White RAL9016; Anthracite RAL7016; Gray RAL7047.
Clear paint - pine: Light teak; Dark teak; Walnut tree; Impregnant; Antique oak; Antique tree; Iroko; Cherry; Old pine; Cypress; Stone pine; Afromosia; Mahogany; Antique teak; Sapele; White pine; Black.
---------------------------------

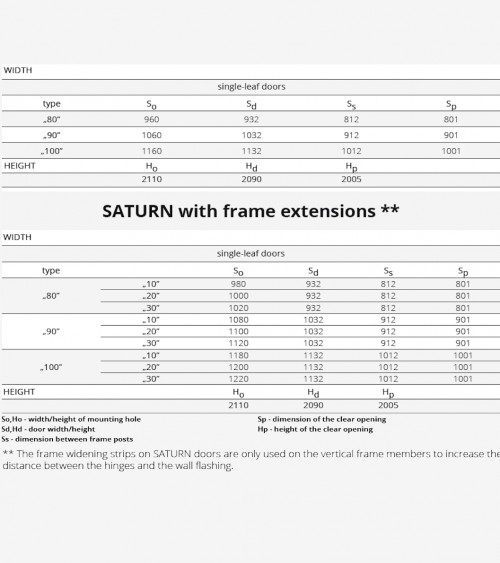

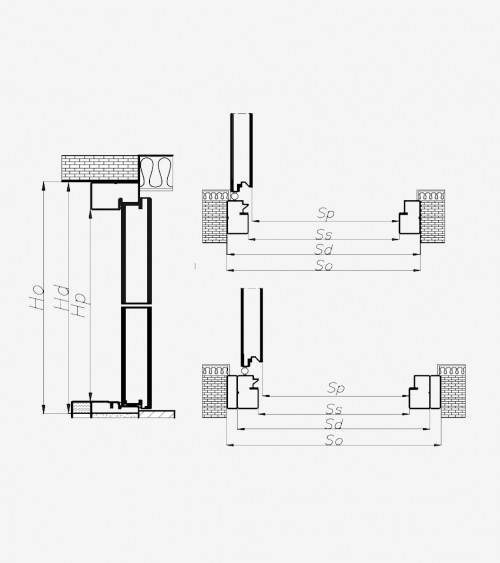

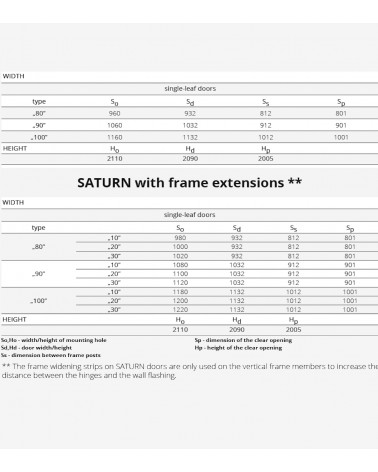

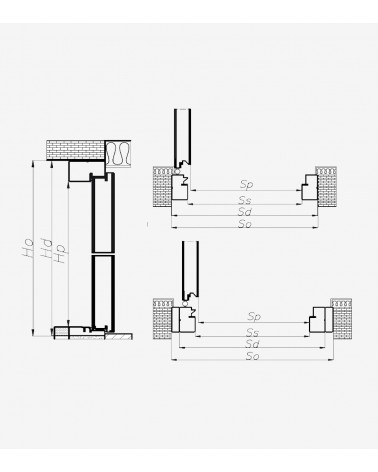

DOOR LEAF WITH FRAME EXTERNAL DIMENSIONS
"80" - 932 x 2090 mm.
Passage width - 801 x 2005 mm.
Recommended dimensions for installation: 960 x 2110 mm.
"90" - 1032 x 2090 mm.
Passage width - 901 x 2005 mm.
Recommended dimensions for installation: 1060 x 2110 mm.
"100" - 1132 x 2090 mm.
Passage width - 1001 x 2005 mm.
Recommended dimensions for installation: 1160 x 2110 mm.
