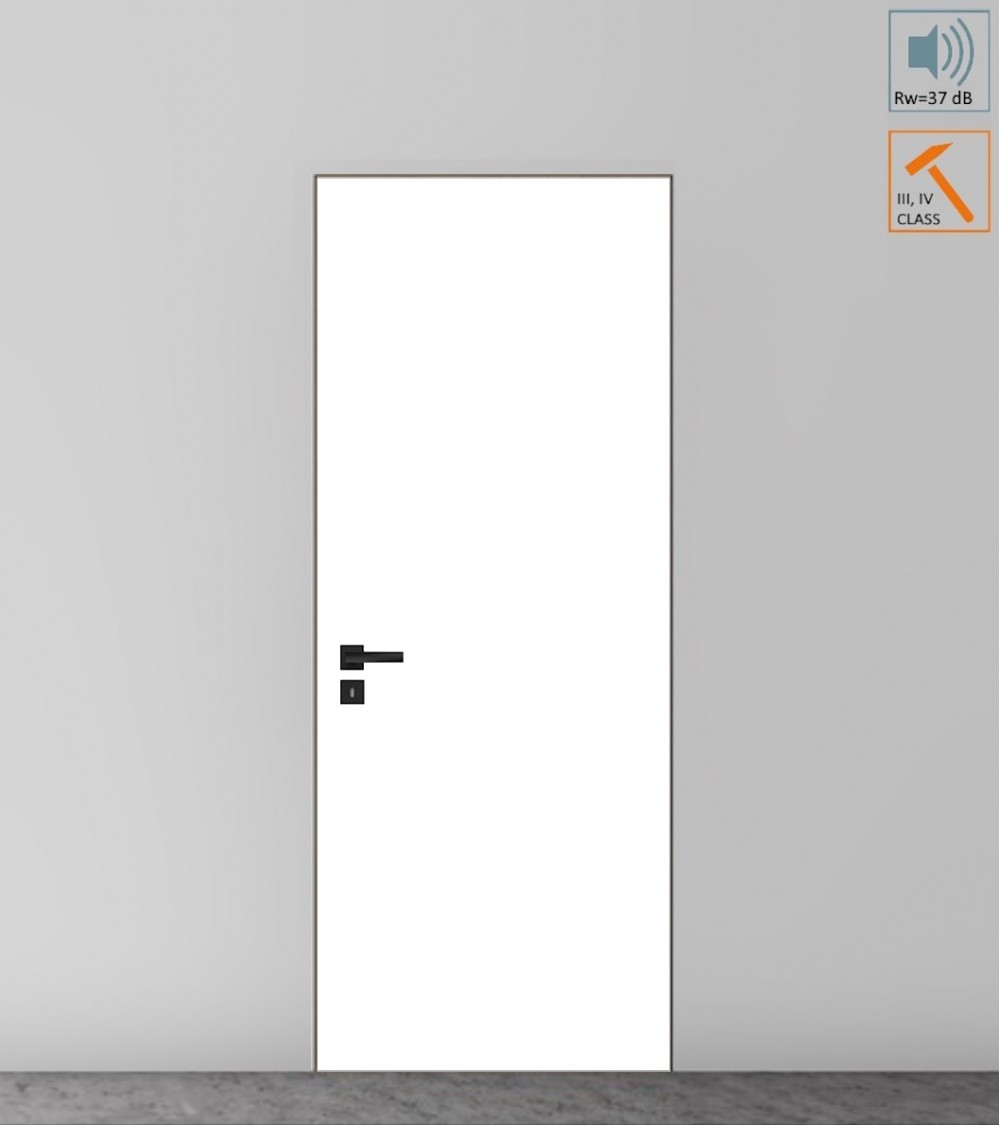

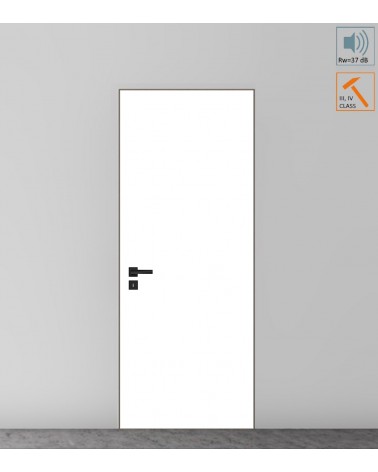

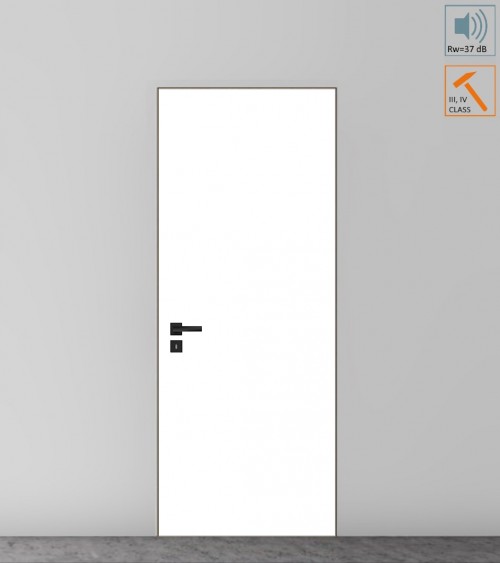

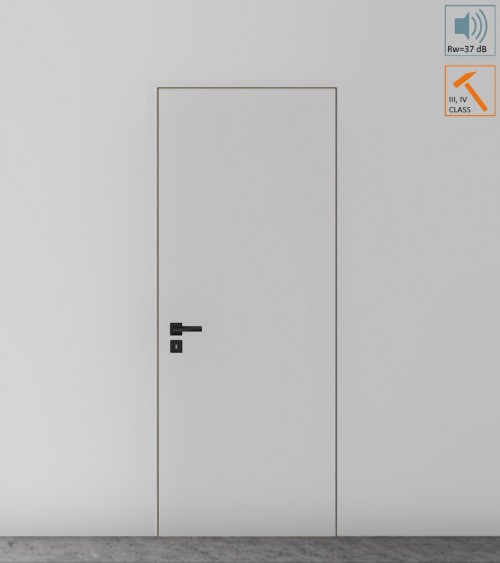

Concealed internal entrance door "HARMONY INVEST" Painted RAL9003

Entrance internal doors intended for use in public buildings including offices, hotels, etc. In addition, the acoustic performance of these doors has been confirmed by research, which has shown sound insulation of 37 dB, ensuring peace and comfort in your home. Mechanical resistance class 4 acc. to PN-EN 1192:2001. The products are of high quality, have been tested by well-known research units and meet the strictest standards. The applied and certified quality management system conforming to the international ISO 9001 standard is an objective proof that the offered quality will be maintained. Certified by FRC®.

COATING: Door leaf is painted according to the RAL or NCS color palette.
*For other colors, please inquire by email.

CONSTRUCTION OF THE LEAF
The door leaf structure is a solid pine frame additionally reinforced with a steel profile, which guarantees excellent rigidity and stability. The filling of the leaf has been specially developed by POL-SKONE to ensure optimal thermal and acoustic insulation. Door leaf equipped with drop seal.

Acoustic insulation capacity: Rw= 37 dB, D1-35, D2-30
National Technical Assessment ITB-KOT-2022/2187 release 1

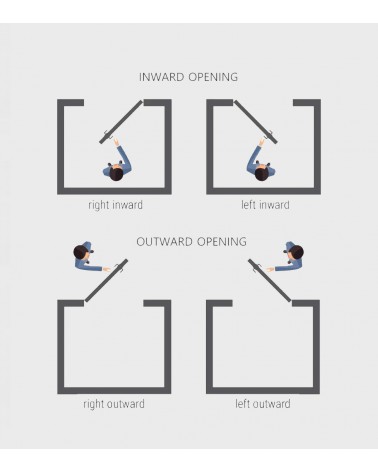

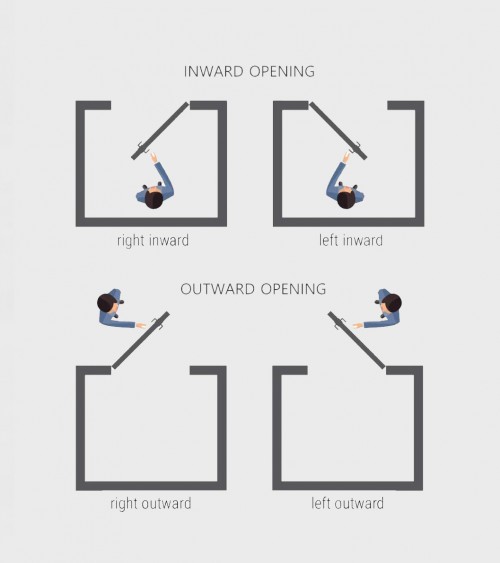

OPENING DIRECTION: Selectable for "left", "right" and "Inward", "Outward" opening.

DOOR LEAF DIMENSIONS
Height: 2020/2030 mm.
Width: 625 mm; 725 mm; 825 mm; 925 nm; 960 m; 1025 mm; 1125 mm.
Thickness: 50 mm.

FRAME DESCRIPTION
The aluminum door frame is invisible after installation, built into openings or treated with plasterboard panels. After finishing the masonry, only the cut of the frame is visible, ready for painting, for example, the color of the walls.
Concealed door frame for inwards or outwards opened doors. Made from anodised aluminum, raw aluminium for do-it-yourself painting in the colour of the wall or painted in white (RAL 9003), black (RAL 9005); grey (RAL 7047), sand (NCS S 2005-Y50R).
*door frame available with averse or reverse action electric strike – contact with the Sales Department.

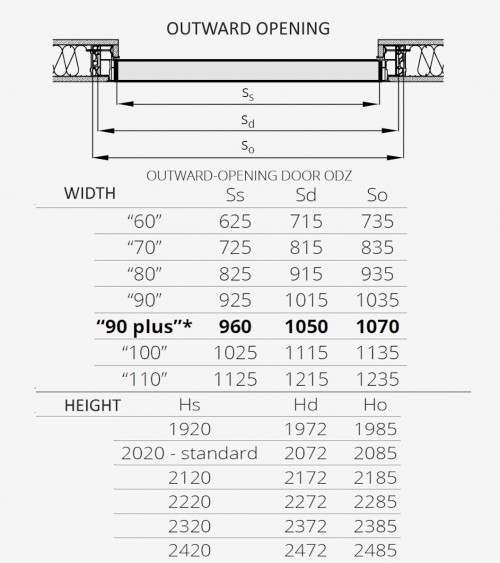

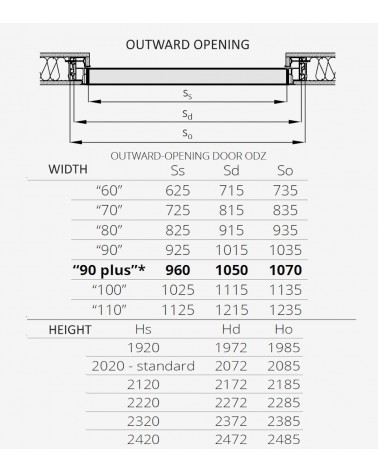

OUTWARD FRAME DIMENSIONS
Width: 715 mm; 815 mm; 915 mm; 1015 mm; 1050 mm; 1115 mm; 1215 mm.
Height: 2072 mm. (2020 mm door leaf)
Height: 2172 mm. (2120 mm door leaf)
Height: 2272 mm. (2220 mm door leaf)
Height: 2372 mm. (2320 mm door leaf)
Height: 2472 mm. (2420 mm door leaf)

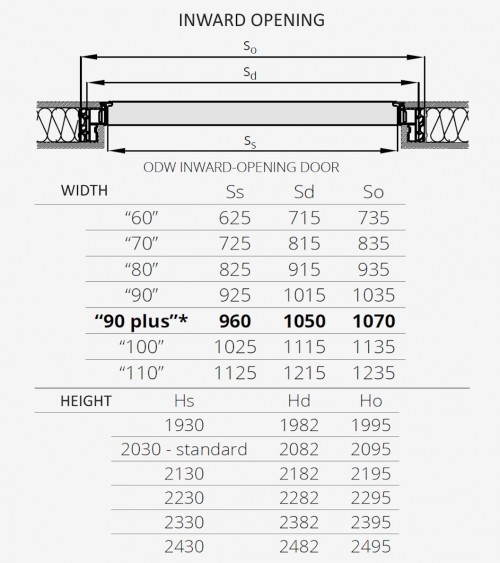

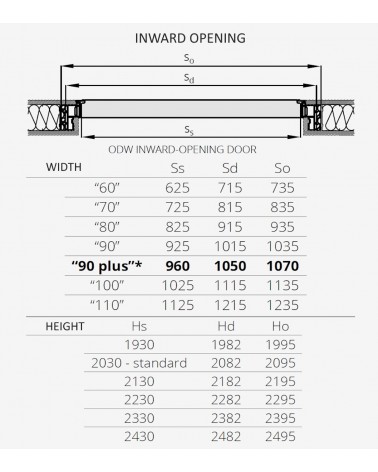

INWARD FRAME DIMENSIONS
Width: 715 mm; 815 mm; 915 mm; 1015 mm; 1050 mm; 1115 mm; 1215 mm.
Height: 2082 mm. (2030 mm door leaf)
Height: 2182 mm. (2130 mm door leaf)
Height: 2282 mm. (2230 mm door leaf)
Height: 2382 mm. (2330 mm door leaf)
Height: 2482 mm. (2430 mm door leaf)

IN STANDARD DOOR SET
Door leaf with dropping seal, aluminum frame, magnetic lock, hidden TECTUS TE 340 hinges.

ADDITIONALLY CAN BE SELECTED: A set of handles; WC lock; Cylindrical lock with collar.
*Electrically operated door opener aversion or reversing door opener.
*GEZE Boxer 2-4 concealed door closer.
