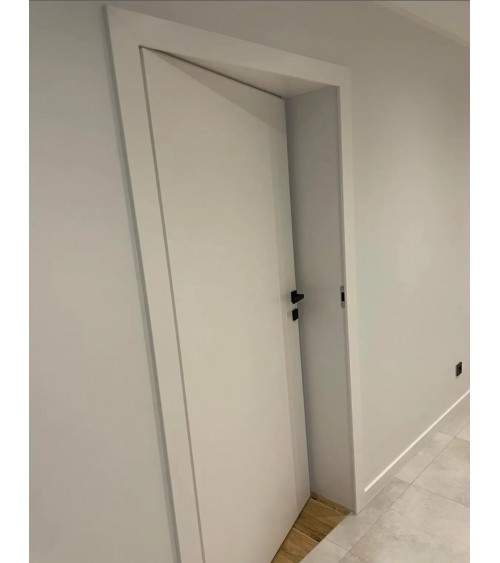

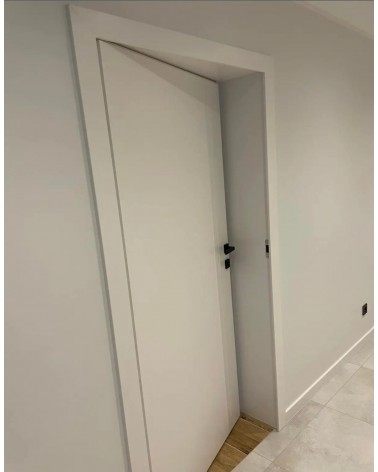

Non-rebated internal doors - "UNI 10"
Delivery across Europe!
Manufacture term: 20 - 40 days
"UNI" is a strong and versatile interior door, which, thanks to its classic design, fits perfectly into any modern interior. This model is available in two versions: smooth and with a round steel porthole. With four vibrant colors to choose from, you can choose the shade that best suits your home.
COATING: Doors painted with acrylic UV varnish.
DESCRIPTION OF THE LEAF
The door leaf frame made of high quality MDF. Door leaf Inverted-rebate.
OPENING DIRECTION: Selectable for "left" or "right" opening.
DOOR LEAF DIMENSIONS
Height: 1981 mm; 2055 mm.
Width: 644 mm; 744 mm; 844 mm; 944 mm.
Thickness: 40 mm.
DESCRIPTION OF THE FRAME
The door frame is made of high quality MDF. Frame with sealing gasket. Ready for installation.
The adjustable frame is equipped with architraves on both sides, the width of the frame can be selected according to the thickness of the wall, it can be used for walls with a thickness of 90-290 mm.
ADJUSTABLE FRAME DIMENSIONS
Width: 90 - 290 mm.
Thickness: 22 mm
EXTERNAL DIMENSIONS OF THE LEAF WITH ADJUSTABLE FRAME
Height: 2014 mm; 2088 mm.
Width: 694 mm; 794 mm; 894 mm; 994 mm.
*The opening in the wall should be no lower than 2025 mm (for 1981 mm door leaf) and no lower than 2100 mm (for 2055 mm door leaf), no narrower than 724 mm. The architraves can cover up to 2130 mm high wall opening.
DESCRIPTION OF ARCHITRAVES
Adjustable "L" shaped door architraves are made of MDF.
Width: 80 mm. Thickness: 16 mm.
EXTERNAL DIMENSIONS OF THE ARCHITRAVES
Height: 2060/2084 mm; 2134/2158 mm.
Width: 785/834 mm; 885/934 mm; 985/1034 mm; 1085/1134 mm.
VENTILATION UNDERCUT: A total ventilation area of 0.022 m2 is ensured under the door.
COLORS: White RAL 9003; Ecru RAL 9001; Latte - Flugger 4362, NCS S1505-Y50R; Ashen RAL 7035.
IN STANDARD DOOR SET
Non-rebated door leaf, frame with sealing gasket, magnetic lock, concealed hinges.
The adjustable frame comes complete with architraves on both sides.
ADDITIONALLY CAN BE ORDERED: A set of handles; WC lock; Cylindrical lock with cover.
