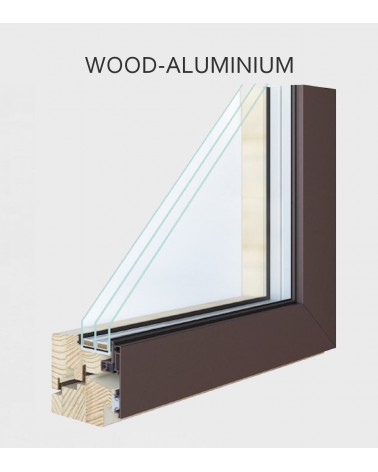

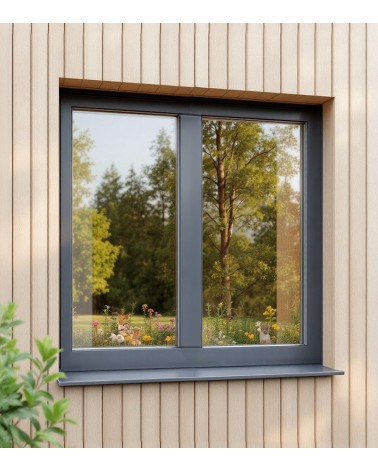

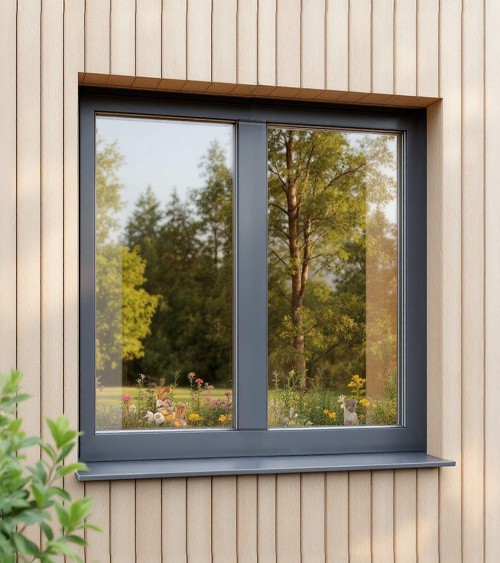

"INTEGRAL" WOOD-ALUMINIUM WINDOW
Provide us with window information or drawings of your property, delivery post code by email and we will provide a calculation with included delivery directly to your object.

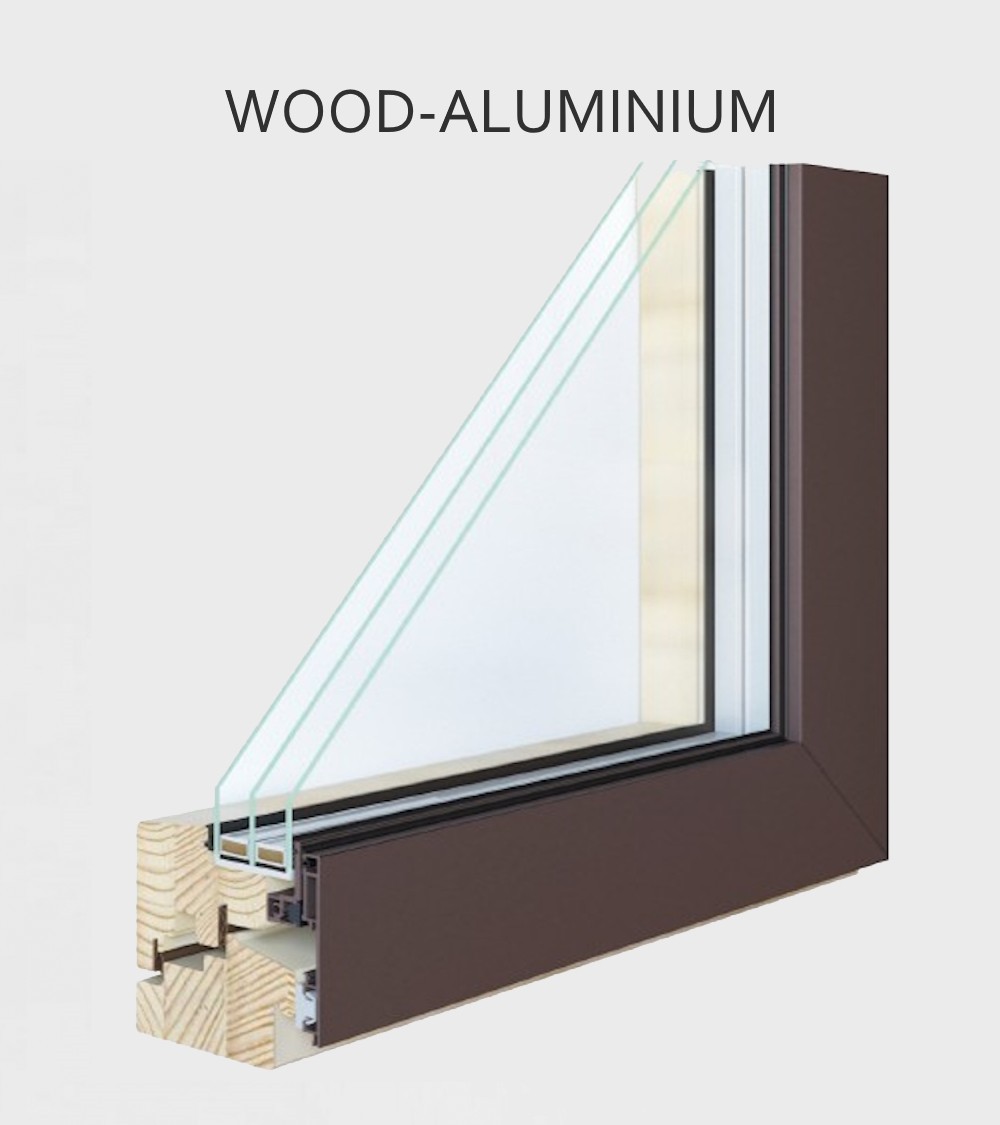

CONSTRUCTION
- single-frame window, wooden-aluminium, sash thickness 76 mm, frame thickness 92 mm, with 105 mm cladding, concealed sash on the outside, flush with the frame on the inside
MATERIAL
- Meranti glued laminated wood, optionally pine or oak
FINISHING

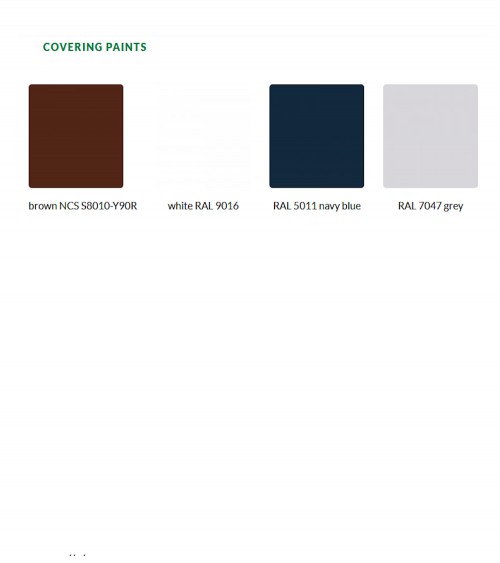

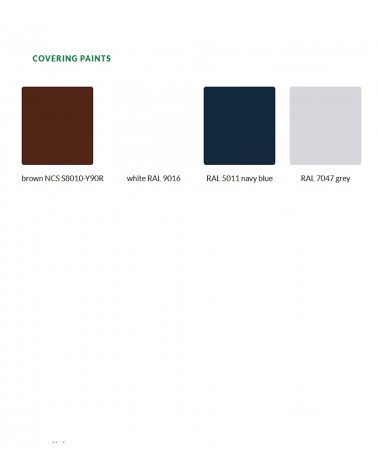

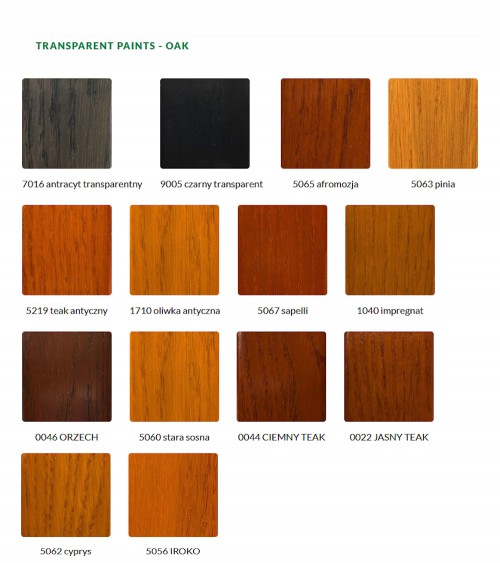

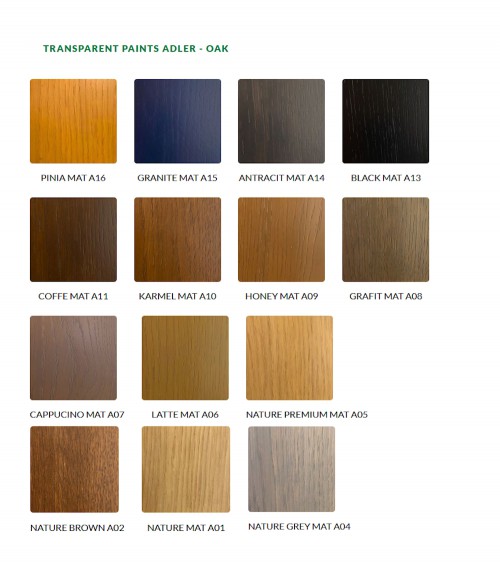

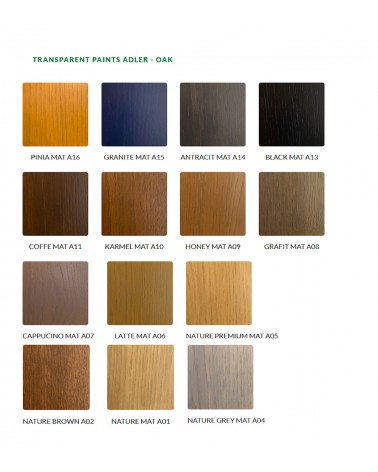

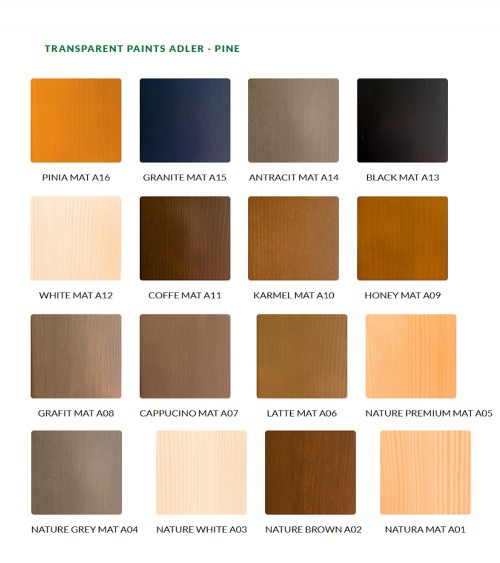

- opaque or transparent water-based paints, three-coat opaque system, four-coat transparent system
STANDARD FINISH
- double glazing unit with warm distance frame
- envelope fittings with concealed MACO MULTI POWER hinges with microventilation function and three-plane adjustment, with anti-balance protection, handle misplacement blockade
- two profile seals in wood available in white, brown, grey or anthracite
- additional seal between the frame cladding and the sash cladding in black
- aluminium cladding on the outside
- handle
PARAMETERS
- thermal transmittance*: 0.79 W/(m2K)
- watertightness class: E1050
- air permeability class: 4
- wind load class: C2
- acoustic properties: 34 (-1;-5) dB
(*) the thermal insulation and acoustic performance values given apply to a reference window size of 1.23 x 1.48 m
Window prices are calculated according to modular pricelists available from sales outlets. Windows other than rectangular are made to individual design. Warranty up to 5 years - detailed conditions in the documentation enclosed with the product.
