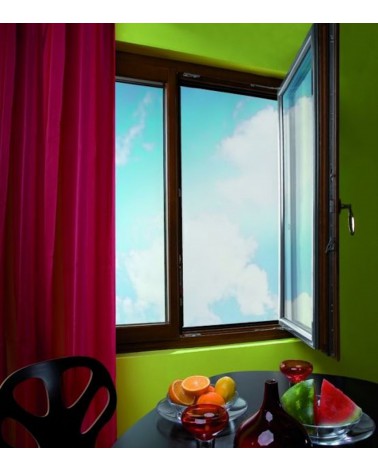

"TYPE C PLUS ALU-EFFECT" WOOD-ALUMINIUM WINDOW

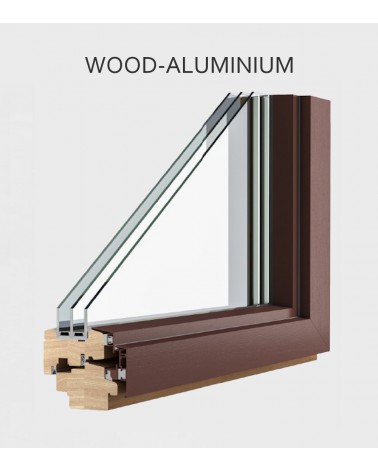

CONSTRUCTION

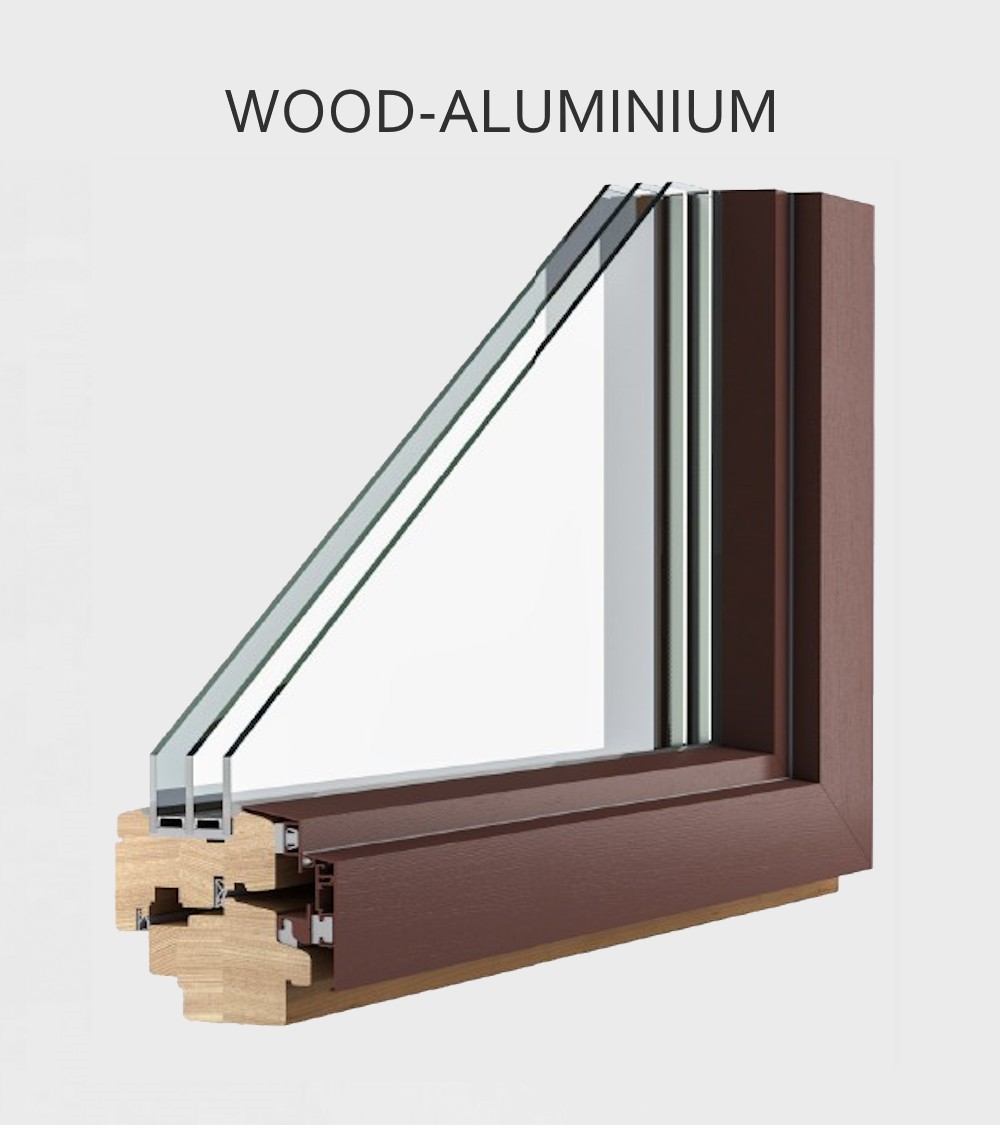

• single-frame window, WOODEN-aluminium with thermal break, sash and frame thickness 78 mm, with 91 mm cladding,
  glazing bead Type C, optional S-System

MATERIAL

• glued laminated pine wood, optionally oak

FINISHING

• Water-based opaque or transparent paints, three-coat opaque system, four-coat transparent system,
• powder-coated aluminium, basic colours RAL 9016, 9010, 9007, 9006, 9005, 8019, 8017, 8007, 8001, 7042, 7035, 7016, 6005, 5010, 3004, 1013, other RAL colours are available at an extra charge.

STANDARD EXECUTION

• double glazing unit with warm distance frame
• Roto NX all-round hardware with microventilation function and three-dimensional adjustment, with anti-balance protection, handle misplacement blockade
• hinge covers, two profile gaskets available in white or brown
• aluminium cladding on the outside
• additional seal between the frame cladding and the sash cladding
• handle

PARAMETERS

• thermal transmittance*: 0.90 W/(m2K)
• watertightness class: E900
• air permeability class: 4
• acoustic properties: 33 (-1;-6) dB

(*) the quoted thermal insulation and acoustic performance values apply to a reference window size of 1.23 x 1.48 m

Window prices are calculated according to modular pricelist available at the point of sale. Windows other than rectangular are made to individual design. Guarantee up to 5 years - detailed conditions in the documentation enclosed with the product.
