"ENERGY CONCEPT 92 ALU-EFFECT" WOOD-ALUMINIUM WINDOW

WINDOWS MEETING THE REQUIREMENTS OF THE CLEAN AIR PROGRAM

WINDOWS DEDICATED TO ENERGY-EFFICIENT BUILDING

CONSTRUCTION

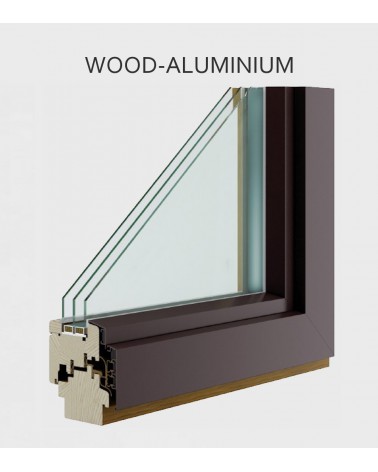

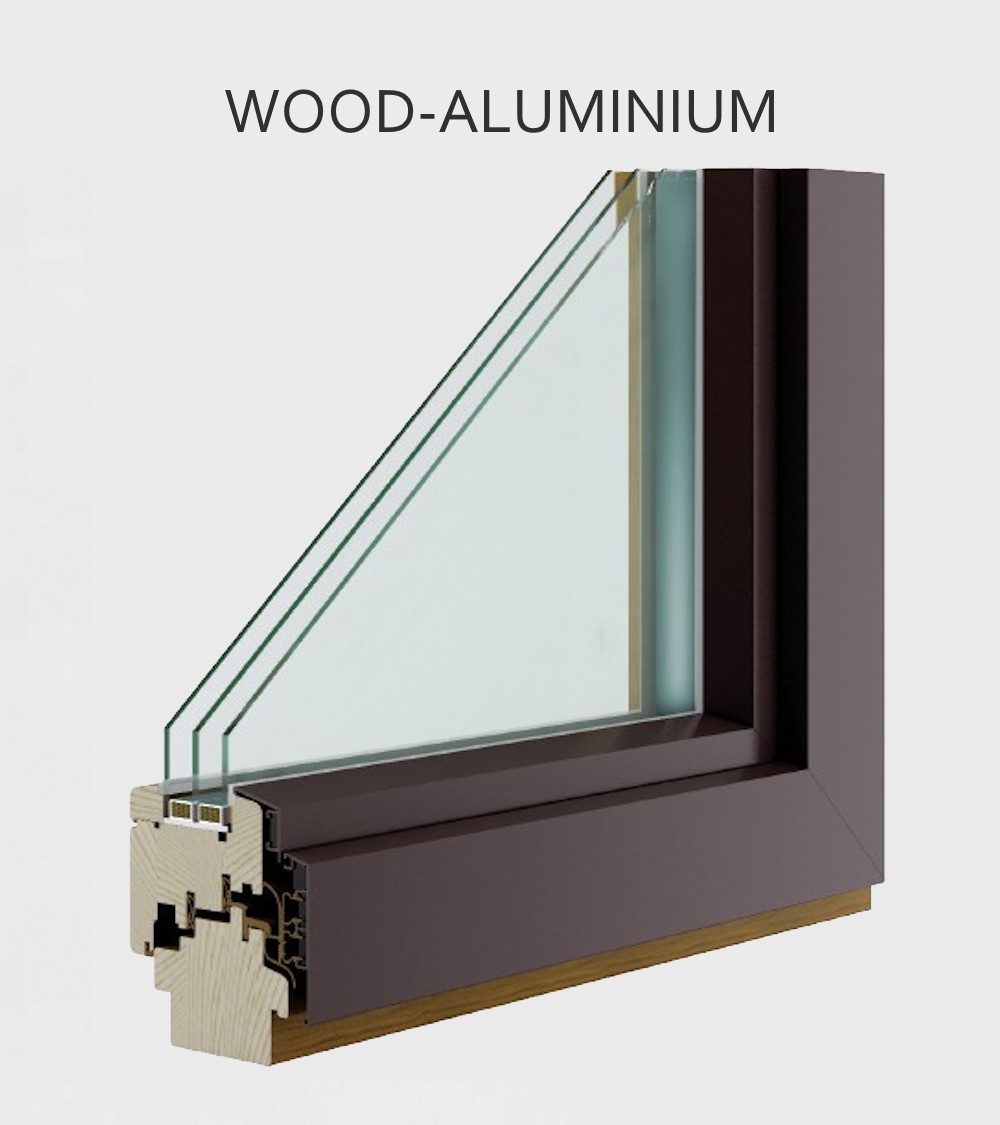

• Single-frame window, wood-aluminum with thermal insert, sash and frame thickness of 92 mm, with cladding of 105 mm.
  Spacer bar Type C, optionally S-System.

MATERIAL

• Layer-glued meranti wood, optionally pine or oak.

FINISHING

• Water-soluble paints, opaque or transparent, three-coat opaque system, four-coat transparent system.
• Powder-coated aluminum, basic colors RAL 9016, 9010, 9007, 9006, 9005, 8019, 8017, 8007, 8001, 7042, 7035, 7016, 6005, 5010, 3004, 1013; other colors from the RAL palette available for an additional fee.

MANUFACTURING STANDARD

• Double-chamber glazing unit with a warm edge spacer.
• Roto NX hardware with micro-ventilation function and three-dimensional adjustment, anti-burglary protection, and locking against incorrect handle positioning.
• Hinges covers, three profile gaskets available in white or brown.
• Additional gasket between the frame cladding and the sash cladding.
• Aluminum drip cap with thermal insert.
• Handle.

PARAMETERS

• Thermal transmittance*: 0.78 W/(m²K)
• Water tightness: E900
• Air permeability: 4
• Resistance to wind load: C3
• Acoustic properties*: 34 (-1; -5)

(*) The stated values for thermal insulation and acoustic properties refer to a reference window with dimensions 1.23 x 1.48 m.

Prices for windows are calculated according to the modular price list available at sales points. Warranty up to 5 years - detailed conditions in the documentation attached to the product.
